Music Man Amps Discussion Forum » Adjustments, Maintenance & Calibration » Power Light
| Author | Message | ||
| Finishlapan |
Hi all, I have a music man HD-130-2-10 and am having problems with the red power light, it goes out on Low Power but works on High Power...any idea what is wrong?...thanks |
||
| michael kaus |
I've seen this before on some amp. The light is neon and requires a certain amount of voltage to fire it(obviously!) and when in the low power setting, the power to the light circuit is halved also. It's nothing to worry about, just anoying. Mike. |
||
| Finishlapan |
oh, I did see the posting after i left mine...thanks. Can it be replaced/... I think seeing the light off when the amp is really on may be the only problem... |
||
| Steve Kennedy (admin) |
This can be a problem with the older models that have their Low/High power switch on the Primary side of the power transformer. When new they work fine but after the neon bulb inside the pilot light gets weak after 30 years they won't fire on the Low Power setting. |
||
| c. |
if you can disantle the bulb, would it not be possible to put a blue lense in it? |
||
| Steve Kennedy (admin) Username: admin Registered: 03-2002 |
A standard neon bulb only puts out light in the wavelengths that cover yellow, orange and red. Putting a blue lense on a neon bulb would result in a dim pilot light. |
||
| Walter Jowers (sonofswamp) Username: sonofswamp Registered: 08-2006 |
Because I'm lazy and don't want to pull out the tray, can any of you tell me if the hole for the neon bulb is about 3/8" - 13/32"? |
||
| Jay Hammond (jead) Username: jead Registered: 01-2011 |
Anyone find a source for the bulb? |
||
| Terry Loose (terry) Username: terry Registered: 05-2006 |
http://www.alliedelec.com/ |
Silvertone Guitars ->TU2->ToneBender->Pitch Pirate Deluxe->DL4->DODFX20b->Holy Grail->Behringer RV600->Demo Tape Fuzz->TrueBypass Looper->Amp
http://wheyface.bandcamp.com
http://schoolshoes.bandcamp.com
Member for
11 years 2 months
Member for
11 years 2 monthsPreserve your MM
An incandescent will work if you want to do the math. Doing that will also make it a candidate for Hall of Shame. Just sayin'. BTW: The mounting hole is 1/2 inch and the neon assy. uses 3/16 Tab terminals. Here;s the pdf list from Allied. Red, Green and Amber are available. Maybe others too. Use the 2nd column of the list for Allied PNs. http://www.alliedelec.com/images/products/datasheets/bm/LIGHTING_COMP_D… Almost forgot. The numbers Terry gave are good even though they're not the same as the data sheet. Good luck. -mgriffin
Silvertone Guitars ->TU2->ToneBender->Pitch Pirate Deluxe->DL4->DODFX20b->Holy Grail->Behringer RV600->Demo Tape Fuzz->TrueBypass Looper->Amp
http://wheyface.bandcamp.com
http://schoolshoes.bandcamp.com
Member for
11 years 2 months
Well......
I think I might already be on the way to the hall of shame. Don't judge me, it's what I want dad.

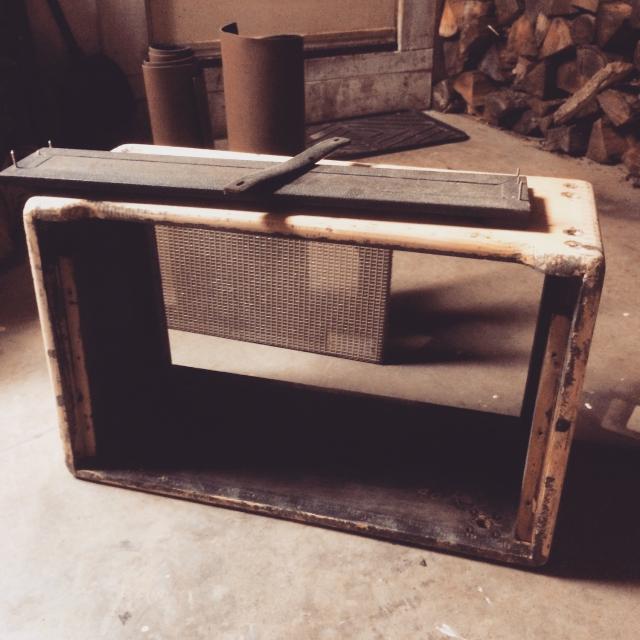

I'll probably just go with an amber neon to save with the math. But it's definitely going to be a totally different amp. Redoing the face plate, floral grill cloth, looking for a nice Buffalo Brown tolex.
Member for
11 years 2 monthsOne Step Beyond
It appears your project is well beyond the point of no return. With that in mind, feel free to do as you wish. I hope it turns out well. If you are in the US, check the Avatar website ( http://avatarspeakers.com/home/ ) for tolex, grillcloth and speakers. You may be surprised by the great values they offer. Good Luck. -mgriffin
Black LE Albert Lee MM90,Trem 2006 with solid 9k gold knobs
2009 VSB SSS Hardtail Albert Lee KTS Titanium saddles 6lb 1 oz
Red EVH Hardtail 1993;
Mesa F50 Combo; Marshall 25/50 Silver Jubilee signed by Jim;
AER 60 ;Fender BJ 15W;WEM Clubman 5W;
Musicman RP 65 112;
Musicman RD 50 112:
Member for
11 years 2 monthsMember for
11 years 2 monthsGrillcloth and Tolex
Hi Spudmurphy,
They're reworking the website and the accessories page is not up yet. I called and confirmed the have 'da chit. Suggest you call 208-732-5251 or send email via the Contact page http://avatarspeakers.com/home/contact/ -mgriffin
Black LE Albert Lee MM90,Trem 2006 with solid 9k gold knobs
2009 VSB SSS Hardtail Albert Lee KTS Titanium saddles 6lb 1 oz
Red EVH Hardtail 1993;
Mesa F50 Combo; Marshall 25/50 Silver Jubilee signed by Jim;
AER 60 ;Fender BJ 15W;WEM Clubman 5W;
Musicman RP 65 112;
Musicman RD 50 112:
Member for
11 years 2 monthsMember for
11 years 2 monthsGrillcloth and Tolex
Uh....I didn't know there was a difference. If there is, I sure couldn't see it. I used some to restore my black MM 112-65 RD and it looked exactly the same as the OEM cloth, minus the paint stains and bar patina. All of the rectangles lined up perfectly at the edges. Also replaced the OEM Eminence speaker with one from them. A 75 watt Celestion Creamback (made in UK). That was a major improvement at a very reasonable price. Try emailing them. They'll be straight with you. Good Luck. -mgriffin
What If!
Here's my thoughts, tell me if I'm wrong. The neon bulbs are 125v, if I stick a standard Fender 6.5v bulb in there, replace the appropriate resistor value to get the correct voltage drop, I'll be fine?
